Ambu® aBox™ 2

Ambu® aBox™ 2

Intuitive design, excellent imaging

Innovative design – all in one

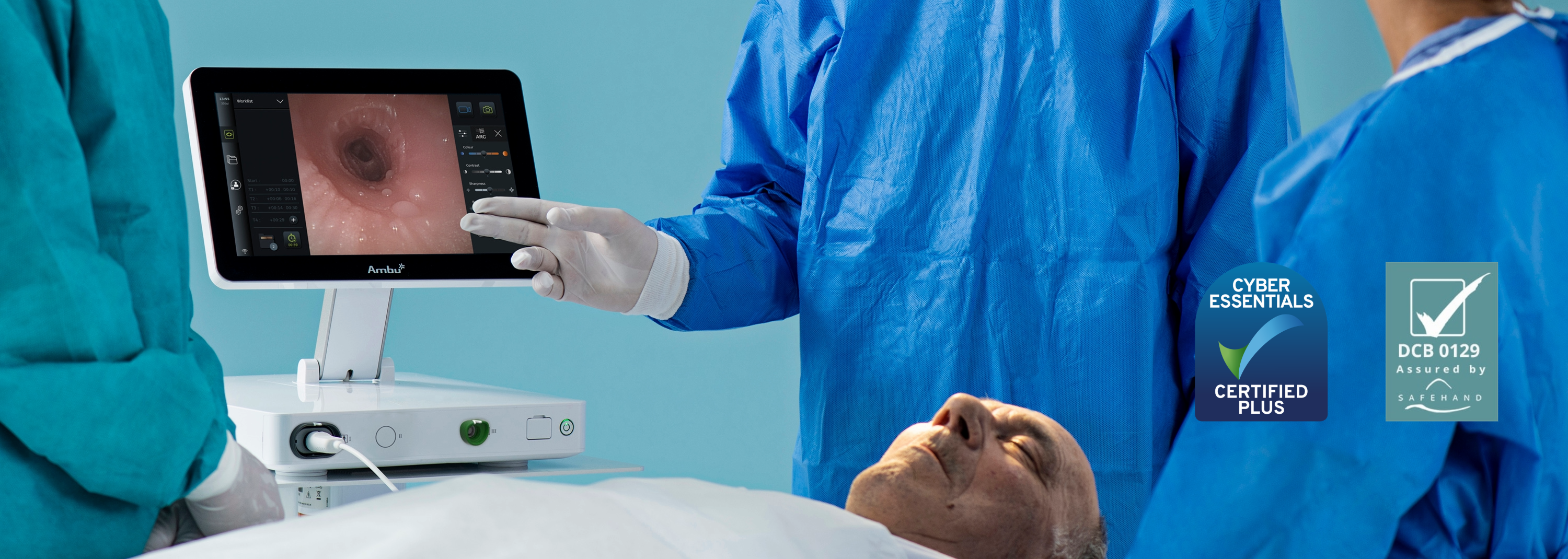

Ambu® aBox™ 2 is a displaying and processing unit with a built-in touchscreen. It offers plug-and-play connectivity for GI endoscopy. The compact and flexible design comprises a light source, a processor, a recorder and an intuitive user interface.

Excellent imaging

The advanced image processing with adaptive light control ensures continuous optimization of the image quality allowing you to see the details of interest.

Helps you maintain focus and control

You’ll see a live endoscopic image within seconds of connecting to aBox 2. The intuitive user interface is right there on the screen next to the endoscopic image, making it easy to maintain focus and control.

KEY BENEFITS

Designed to meet your everyday needs

Continuous optimisation

Advanced image processing and adaptive light control deliver clear images that help you manoeuver and identify anatomical structures.

Modality worklist

Import your daily worklist and select the patient directly on aBox 2.

Compact and flexible design

Place on cart, rack or table; connect to external monitor as needed.

Built-in recorder

Zoom in and out, capture images & videos; review them post-procedure with others.

Easy to document imaging data

Transfer recorded imaging to your PACS server and electronic medical record software.

Adjustable monitor

Raise, lower or rotate screen for best viewing angle.

Features

aBox 2

add_circle1

Full HD resolution LCD monitor

Anti-reflective surface, true colours and adjustable colour, contrast, sharpness and brightness
add_circle2

Built-in recorder

Press button on touchscreen (or endoscope) to capture image or video
add_circle3

Advanced Red Contrast

Proprietary algorithm designed to improve visibility using red colour tones to contrast variations
add_circle4

Integrated timestamp and stopwatch

Use to track time spent on the procedure or as a quality indicator
add_circle5

Personalised settings

Create user profiles with language, time zone, and configurable endoscope button functions
add_circle6

Simple user interface

Touchscreen with intuitive graphical user interface available in 28 languages
add_circle7

Archive

Access images and videos from current and recent procedures
add_circle8

Live view

Always easy access to your live image (during the entire procedure)
add_circle9

Worklist

Import scheduled patients ensuring the recorded imaging is connected to the right patient records

Anti-reflective surface, true colours and adjustable colour, contrast, sharpness and brightness
Press button on touchscreen (or endoscope) to capture image or video
Proprietary algorithm designed to improve visibility using red colour tones to contrast variations
Use to track time spent on the procedure or as a quality indicator
Create user profiles with language, time zone, and configurable endoscope button functions
Touchscreen with intuitive graphical user interface available in 28 languages
Access images and videos from current and recent procedures
Always easy access to your live image (during the entire procedure)

Import scheduled patients ensuring the recorded imaging is connected to the right patient records

Technical specifications

Touchscreen

Full HD 12.8" colour LCD display

Input/Output options

USB 2.0, USB 3.0, 3G-SDI, DVI-D
D-SUB9 (trigger port)
3.5 mm Jack (trigger port)

Internet options

Wi-Fi (IEEE Standards 802.11 ac/a/b/g/n)
LAN (RJ45 connector)

Weight kg (lbs)

8 (17.6)

Height mm (inches)

90° angle screen: 278 (10.9)
Folded screen: 121 (4.76)

Width mm (inches)

330 (13)

Depth mm (inches)

337 (13.3)

Spare parts

We offer 4 Spare parts for this product

Downloads

Datasheet

file_download aBox2-Datasheet.pdf
(6.48 MB - pdf)
file_download How to activate a new endoscope – Quick Guide
(286.63 KB - pdf)

Instructions for use

file_download IFU (EN, DE, ES, FR, IT, NL, PT) Ambu® aBox™ 2 V06 2023/10
(21.57 MB - pdf)
file_download IFU (EN, DE, ES, FR, IT, NL, PT) Ambu® aBox™ 2 V07 2024/08
(22.88 MB - pdf)

Supplementary Information (5)

file_download eSBOM aView 2 Advance and aBox 2 with SW 2.4 (CycloneDX)
(11.84 KB - json)
file_download eSBOM aView 2 Advance and aBox 2 with SW 2.4 (SPDX)
(14.91 KB - json)
file_download Cyber Security documentation aBox 2 and aView 2 Advance SW2.4
(1.05 MB - pdf)

Additional documents are available on ambu.com.

January 2022

Note: US: Rx only
